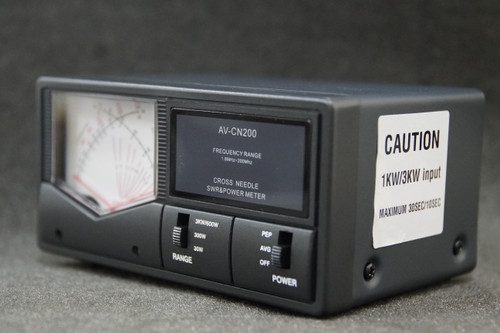

CN-200 Cross-Needle HF, VHF VSWR/Power Meter 3KW



SPECIFICATIONS
Frequency Range:                            1.8 to 160 MHZ
Power Measurement Range               0.5 to 3KW (30W/300W/3KW )
Continuous power rating:                 CW/SSB for 1.2-200MHz 300W
Maximum power handling:               3Kw 15 seconds / 2Kw 30 seconds / 1Kw 60 seconds
Minimum Power Measurement:         0.5W FOR AV-CN200 , AV-CN400 and AV-CN600
Accuracy:                                       30W±5%, 300W±5%, 600W±7.5%, 3KW±7.5%
SWR Measurement Range:               1 to INFINITY
Impedance:                                   50 ohm
Insertion Loss:                               0.2db
Dimensions:                                  15X6.5X10CM
Weight:                                         630g.
