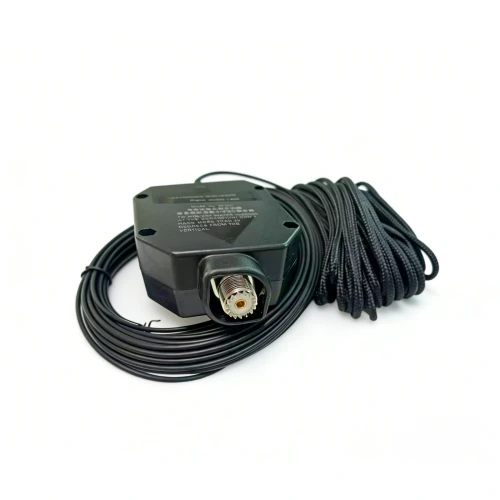

CHELEGANCE JEFHW-4010-150 EFHW ANTENNA, 4-BAND 40/20/15/10M, 150W PEP, NO TUNER REQUIRED, PORTABLE HF END-FED WIRE ANTENNA
-
True No-Tuner Operation Across 4 HF Bands
-
High-Efficiency 150W Power Handling
-
One Support Point, Maximum Performance
-
Built for Portable Operations (POTA/SOTA Ready)
-
Flexible Deployment Configurations
Description
The CHELEGANCE JEFHW-4010-150 is a high-performance 4-band End-Fed Half Wave (EFHW) antenna designed for HF amateur radio operators who need a simple, reliable, and portable solution. Covering the 40m, 20m, 15m, and 10m bands without requiring an external tuner, it delivers efficient operation in a compact, single-support setup—ideal for portable activations, base stations, and emergency communications.
Engineered for natural resonance on 40m, 20m, 15m, and 10m, delivering low SWR (typically ≤1.5:1) without the need for an external tuner. Just connect and operate.
Built with a precision-wound 49:1 (or 64:1) Unun using high-quality ferrite core, ensuring low loss and stable performance up to 150W PEP.
Unlike dipoles, this EFHW requires only one elevated support point, making setup faster and more flexible in portable or limited-space environments.
Lightweight wire structure and compact matching box make it ideal for POTA, SOTA, field day, and emergency communications.
Supports horizontal, sloper, and inverted-V configurations, allowing you to adapt to different terrains and operating conditions.
Specification
| Model | JEFHW-4010-150 |
| Antenna Type | End-Fed Half Wave (EFHW) |
| Frequency Bands | 40m / 20m / 15m / 10m |
| Frequency Range | 7–30 MHz (Typical Coverage) |
| Power Rating | 150W PEP (SSB), 120W (CW) |
| Digital Mode Power | Up to 80W (FT8 Recommended ≤80W) |
| SWR | ≤1.5:1 (Typically lower on most bands) |
| Impedance | 50 Ohms |
| Transformer Ratio | 49:1 (or 64:1) High-Efficiency Unun |
| Connector Type | SO-239 (UHF Female, Typical Configuration) |
| Radiator Length | Approx. 20 meters (≈65.6 ft) |
| Wire Specification | 2.5 mm² Copper-Clad Wire |
| Matching Box | High-Ratio Transformer with Weather-Resistant Enclosure |
| Installation Type | Horizontal / Sloper / Inverted-V |
| Support Requirement | Single Support Point Required |
| Ground Requirement | Recommended for optimal performance (not mandatory) |
| Clearance Requirement | ≥3m from non-metal objects, ≥5m from metal objects |
| Operating Modes | SSB / CW / Digital (FT8, RTTY, etc.) |
| Operating Temperature Note | Reduce power in high ambient temperatures for stable SWR |
| Shipping Weight | Approx. 1.6 kg |
| Package Size | 20 × 20 × 10 cm |
Part List
1 × JEFHW-4010 Matching Unit
1 × ~20m Radiator Wire
1 × Installation Rope Set
1 × Portable Storage Bag
12 Months Warranty
